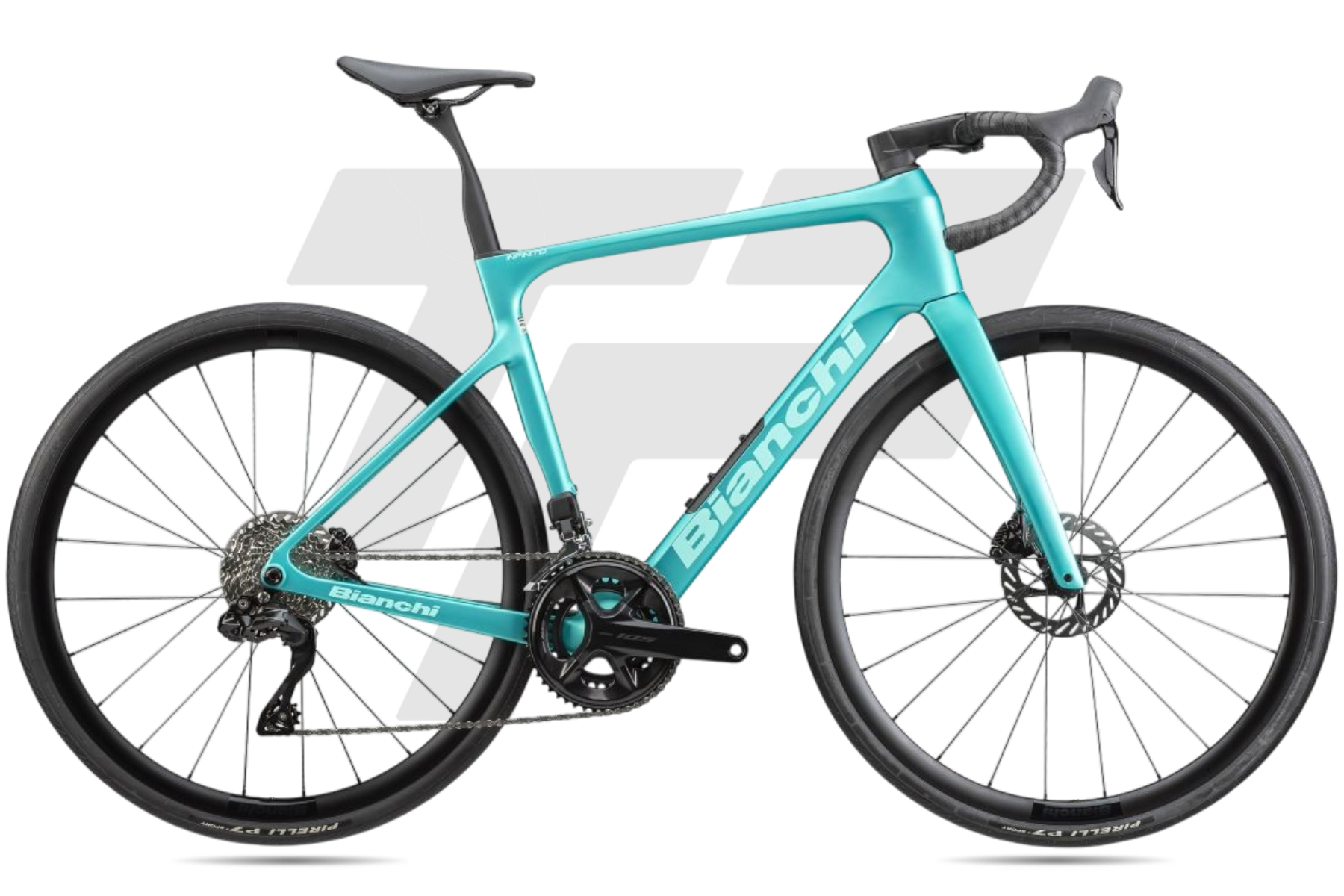

The Bianchi Infinito Shimano 105 12-speed brings an all-rounder approach to road cycling, blending responsive road performance with comfort over long distances and the freedom to explore varied surfaces. Designed for training rides, full days in the saddle and changing routes, the latest Infinito platform focuses on versatility without losing its road-bike character.

The Bianchi Infinito frame features internal cable routing and an integrated storage compartment in the down tube, designed to carry small tools or a wind jacket. It uses Flat Mount 140/160 disc fittings, a PressFit 86.5×41 mm bottom bracket and a 12×142 mm rear thru-axle. SRAM UDH compatibility and tyre clearance up to ETRTO 622-40 offer flexibility for different setups.

Its mechanical Shimano 105 12-speed drivetrain includes ST-R7120 shifters, an RD-R7100 rear derailleur, an FD-R7100 front derailleur and an FC-R7100 Hollowtech 2 crankset with 50x34T chainrings. The Shimano 105 CS-R7100 11-34T cassette provides a useful range for rolling roads and climbs. Shimano BR-R7170 hydraulic disc brakes, paired with 160 mm Shimano SM-RT54 rotors, provide controlled stopping on varied routes.

Bianchi B30R alloy wheels feature a 30 mm rim profile and 23 mm internal width. They come with Pirelli P7 Sport 35-622 tyres, rated at 60 TPI, reinforcing the bike's comfort-focused versatility. An AL6061 Bianchi stem and Bianchi Compact AL6061 handlebar shape the cockpit. The Bianchi Infinito carbon seatpost combines an aero-flex design with Countervail technology to help reduce vibration, while the 260x150 mm Bianchi Manganese Rail saddle completes the contact points.

Available in Celeste Metallico / Logo CK16 and Rosso Rubino / Logo Avorio, this Infinito build is ready to accompany fitness rides, challenging climbs and long road adventures. It balances a well-defined mechanical groupset with practical details that make everyday rides and ambitious routes equally appealing.

Frame

Bianchi Infinito, Flat Mount 140/160 mm, PressFit 86.5×41 mm BB, 12×142 mm thru-axle, SRAM UDH compatible, 46-54T chainring compatibility, internal cable routing, max tire clearance ETRTO 622-40. Sizes: 47-50-53-55-57-59-61.

Fork

Bianchi Infinito, Flat Mount 140/160 mm brake caliper, thru-axle, OLD 100 mm, steerer tube diameter 1″1/8.

Groupset

Shimano

Brakes

Shimano 105 BR-R7170 Hydraulic Disc

Controls

Shimano 105 R7120 12s

Front Derailleur

Shimano 105 FD-R7100 12v Mechanical

Rear Derailleur

Shimano 105 RD-R7100 12s Mechanical

Cassette

Shimano 105, CS-R7100 11-34T, 11-12-13-14-15-17-19-21-24-27-30-34T

Crankset

Shimano 105 FC-R7100, Hollowtech II, 50/34T. Crank arm length: 165 mm (sizes 47-50); 170 mm (53-55); 172.5 mm (57-59); 175 mm (61).

Tires

Pirelli P7 Sport, 35-622, 60 TPI

Wheels

Bianchi B 30R, aluminum, 23 mm internal rim width, 30 mm rim depth, 2:1 spoke lacing, J-bend spokes, black, HG11 freehub body.

Stem

Bianchi AL6061, -7° angle. Length: 90 mm (sizes 47-50); 100 mm (53-55); 110 mm (57-59); 120 mm (61).

Handlebar

Bianchi Compact, AL6061 aluminum, diameter 31.8 mm, reach 80 mm, drop 130 mm. Width: 380 mm (sizes 47-50); 400 mm (53-59); 420 mm (61).

Saddle

Bianchi, manganese rails, length 260 mm, width 150 mm.

Seat post

Bianchi Infinito, Countervail technology, carbon fiber, Aero-Flex section. Length: 320 mm, 0 mm offset (sizes 47-53); 350 mm, -20 mm offset (55-61).

Warranty

Official Bianchi

Notes

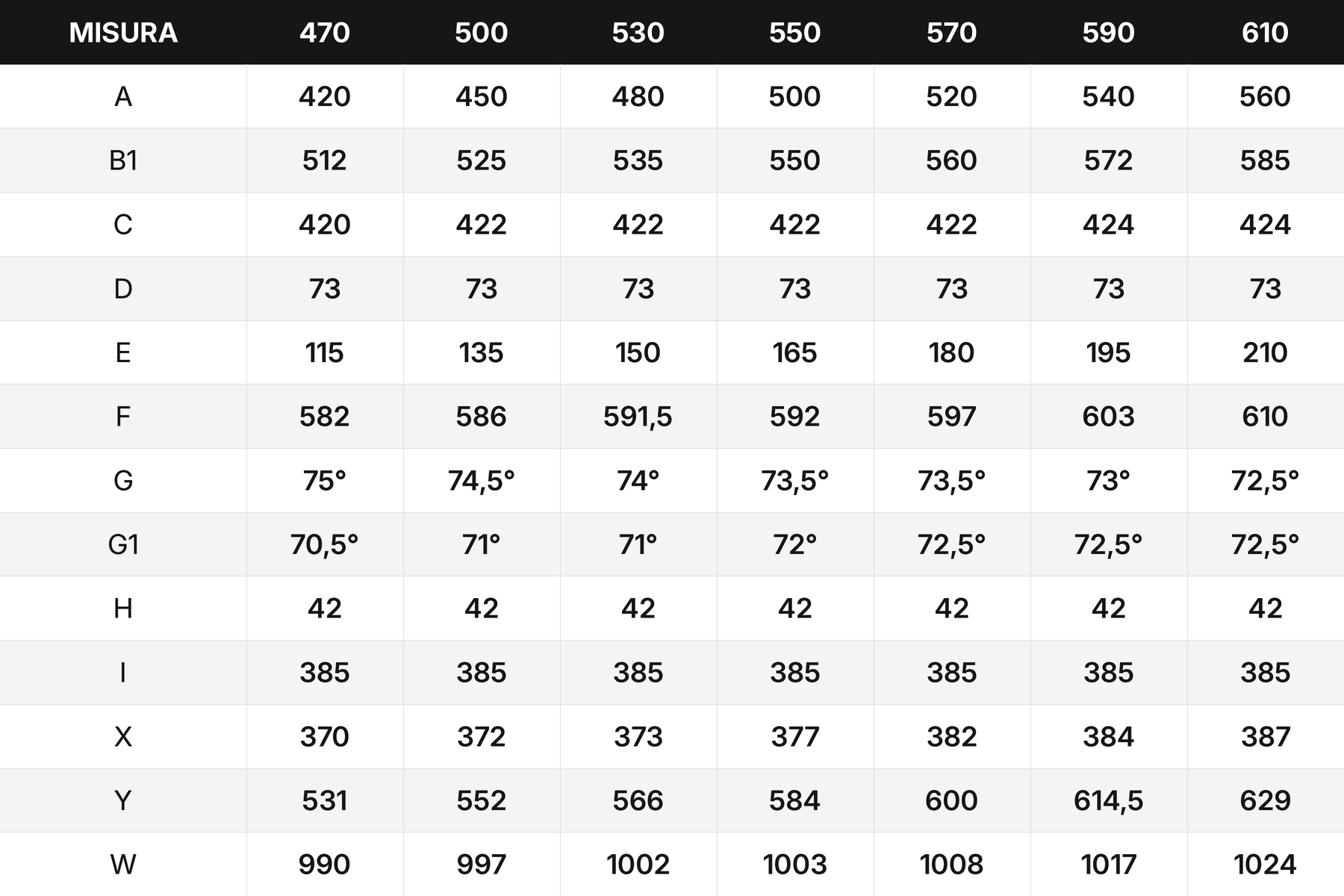

Crank length, handlebar size and seat width can be found in the geometries tab.
For customizations, sizing advice, or any questions, feel free to contact us! Test rides available at our headquarters.
